| NAME |

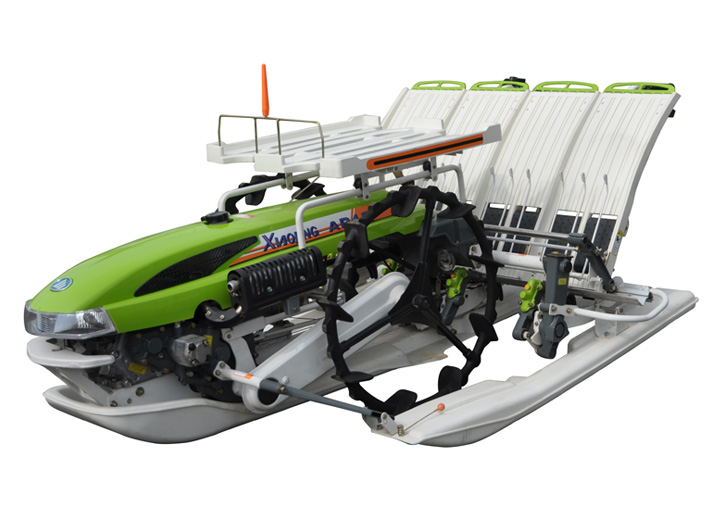

AP40 Walking Rice Transplanter |
| TYPE |
|
Walking, Manual Hold |
| OVER-ALL PARAMETER |
|
|
| –DIMENSION |
mm |
2180× 1480× 950 |
| –WEIGHT |
kg |
150 |
| ENGINE |
|
|
| –Brand |
|
Yamaha |
| –Model |
|
MZ175(R） |
| – Type |
|
Single cylinder air-cooled |
| – Rated Power |
kw(hp) |
4 |
| –Displacement |
mL |
171 |
| –Speed |
r/m |
4000/3600 (MAX/MIN) |
| –Fuel Tank Capacity |
L |
3.5 |
| –Fuel Consumption |
L/h |
≤3.5 |
| –Starting System |
|
Hand recoil |
| TRAVELLING |
|
|
| –Wheel Adjustment |
Yes/No |
Yes |
| –Wheel Structure |
|
Iron+Ruber Tire |
| •Diameter |
mm |
660 |
| •Width |
mm |
90 |
| • Upward/Downward Adjustment |
|
Hydraulic |
| –Planting Speed |
|
|
| •Forward |
m/s |
0.36-0.73 |
| • Rearward |
m/s |
- |
| –Travelling Speed on Road |
km/h |
0.75-1.51 |
| –Transmission |
|
Gear |
| –No.of Shifting Positions |
|
|
| •Forward |
|
2 |
| • Rearward |
|
1 |
| PLANTING PERFORMANCE |
|
|
| –No.of Planting crop |
|
4 |
| –crop spacing |
cm |
12.6,13.9,16.9,17.4,19.2,23.3 |
| –Distance between Rows |
cm |
PRESET TO 25 OR 30 |
| –No.of Seedlings per Hill |
|
|
| •Crossfeed distance = |
times |
20,22,24 |
| •Vertical taking quantity （mm） |
mm |
6-18 |
| –Planting Depth |
mm |
10～35(6STEPS) |
| –Transplanting ClawType |
|
aluminum alloy |
| PRODUCTIVITY |
ha/h |
0.2-0.27 | |
|
