Feactures:
- Strengthened durable chassis, desinged for 10years.
- One lever lubrication function for chain system.
- Easy-Access-Design, openable thresher covers.
- Reverse Mechanism at conveyor and cutter table.
- Cabine with air conditioner.
Options:
- Extra kit for millet, rapeseed, corn, soybean, sorghum etc. crop.
- Straw crusher
- Straw Baler |
|
|
| Machine Model |
AU2.0I-B with CAB |
| Style & Type |
‘I’style=longitudinal flow, full-feeding, rubbertrack, self-propelled |
| Suitable Crop |
Paddy, Wheat, Barley |
| Working dimension L×W×H, |
4950×2750×2860 mm |
| Weight (empty tank), |
3540kg |
| Min. ground clearance, mm |
260mm |
| Ground clearance (under axle house) |
280mm |
| Harvesting capacity |
0.23~0.95ha/hour |
| Feed rate |
5.0kg/second |
| Engine |
Model |
Changhai 4G33 |
| Power |
99Hp/2600RPM |
| Fuel tank |
90L |
| Rubber track |
Specification |
450×90×51 (option: 500-90-51,400-90-51) |
| Walking gearbox |
Type |
Mechanical+HST==>stepless transmission |
| Gear |
Main gear: forward+reverse; Auxiliary gear: low, harvesting, high |
| Walking speed |
Forward |
Low gear:0-1.43m/s, Harvesting gear: 0-1.87m/s, High gear: 0-2.65m/s |
| Reverse |
| Steering type |
Hydraulic, brake+clutch change |
| HST |
43L |
| Reel |
Type |
Tine bars + Eccentric bar frames |
| Diameter |
Φ900mm, 5bars |
| Cutter table |
Control type |
Hydraulic |
| Cutting width |
2.4 m |
| Diameter of head auger |
Φ318mm (option: 380mm) |
| Coneyor type |
Chains |
| Threshing unit |
Main drum dimension |
Φ555×1800mm |
| Main drum type |
I’ style= longitudinal flow |
| Drum quanity |
1 main thresher+ 1auxiliary reshresher |
| Concave |
4 Steel grids |
| Sieve |
Shaking sieve, adjustable |
| Cleaning type |
Shaking sieve + blowers + re-threshing |
| Blower type and qty |
Centrifugal type |
| Blower diameter |
Φ350mm |
| Grain tank |
|
1.3CBM |
| Grain discharging |
Hydraulic Auger Unloading, Low Position |
| Note: Some specification, designs may be changed without prior notice. | |
|

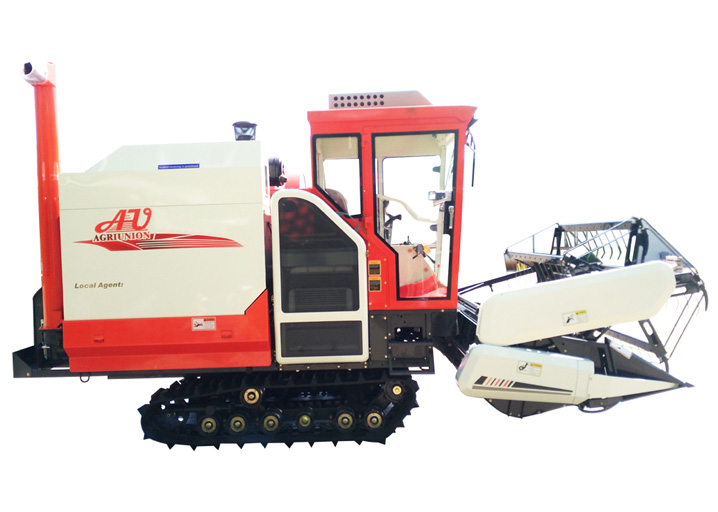

Single Driving Combine Harvester
